Oxi-PAN 6A
SERIAL PRODUCTION
Standard grade for graphite-electrode programs.
Status: in current production programs
HANBOO SOLUTION / OXI-PAN CARBON FELT
Carbon felt for
graphite electrodes
Oxi-PAN is polyacrylonitrile fiber, thermally stabilized and needle-punched into a dense carbon-black felt. It goes into the graphite-electrode processes behind secondary batteries and ESS — in serial production today, with the heat resistance of a material that chars instead of melting.
GRADES 6A · 6B · 6C
SERIAL PRODUCTION 6A · 6C
CAPACITY 500 t/mo (2026)
EXPANSION → 1,000 t/mo
Grades
Three grades by fiber type
SPEC SHEETS — ON REQUEST
LOI · GSM · THICKNESS PER GRADE

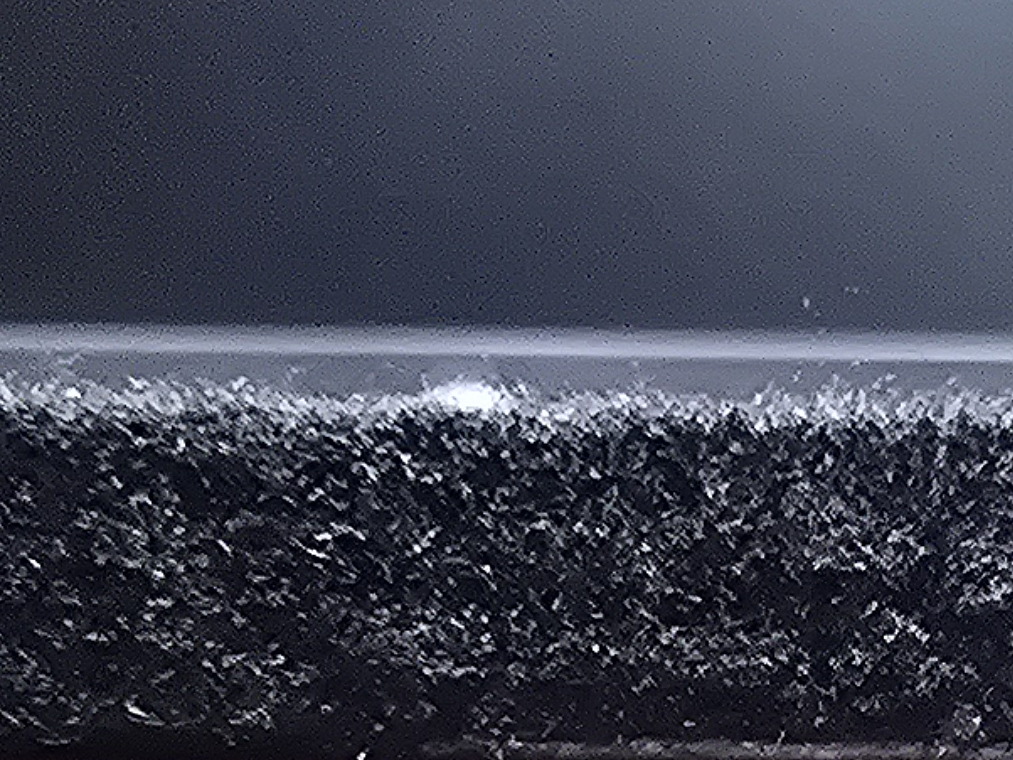

Oxi-PAN 6B
AVAILABLE GRADE
Intermediate grade — produced to order.
Status: available on request

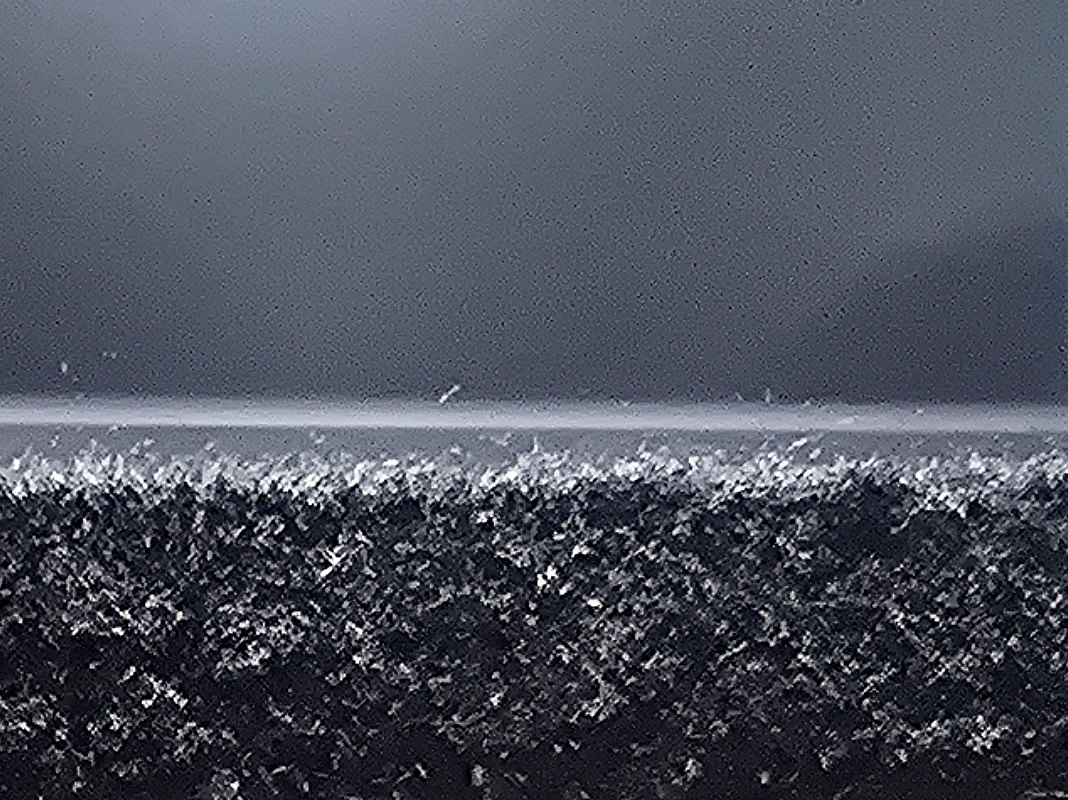

Oxi-PAN 6C
SERIAL PRODUCTION
Higher-spec grade for demanding electrode and high-temperature processes.
Status: in current production programs
Numeric specifications (LOI, carbon content, weight, thickness, max service temperature, roll dimensions) are issued per grade with test methods stated — request the Oxi-PAN datasheet via Contact / RFQ.
Scale-up
Seven years from lab to industry scale
DEDICATED LINES — HANBOO GISAN (P4)
2018 – 2022
Development
First trials, process know-how, stabilization of oxidized-fiber handling.
2023 – 2024
Scale-up
Output stepped up; equipment and process optimized for continuous runs.
2025
Volume production
Stable volume production system established on dedicated lines.
2026 →
500 → 1,000 t / month
Operating at 500 t/mo today; expansion toward 1,000 t/mo in progress.
$2.8M USDOxi-PAN revenue, 2025 — share growing
15.7%of group revenue and rising
10-2135198patent — carbonized-fiber felt production system
Applications
Where Oxi-PAN earns its keep
- Secondary-battery & ESS graphite electrodes
Carbonized-fiber felt for graphite-electrode production — our core Oxi-PAN application, in serial production and protected by patent 10-2135198. - High-temperature process duty
A secondary strength: Oxi-PAN chars instead of melting, so it also serves furnace and process environments where organic felts fail. - Flame-barrier layers
Char-forming protective layers in composite constructions. - Precursor applications
Oxidized-PAN as a stage toward carbon-fiber materials — development with partners.
From precursor fiber to electrode process
- PAN precursor fiber
- Thermal stabilization (oxidation)
- Fiber opening & carding
- Needle punching to grade weight — 6A · 6B · 6C
- Inspection, winding & roll packing
- Customer electrode process — carbonization · graphitization
STEPS 1–5 AT HANBOO GISAN (P4) · STEP 6 AT THE CUSTOMER
Supply
Volume commitments, answered with capacity
Roll dimensions, MOQ, lead time and monthly allocation are quoted against live line capacity at Hanboo Gisan.
